Feature | Naming Rule | |
1, support 5MP 2/3 "camera with 2/3" sensor; 2, manual iris, iris rang is F2.8-C, max focal length is 55mm; 3,deep DOF, low distortion, high resolution; 4, telecentric optical design, suitable in machine vision industry and automation industry. |
| |
| Application —— | ||
Widely used in electronic industry, priting industry, mobile industry and detection industries which require high accuracy. | ||
| ||

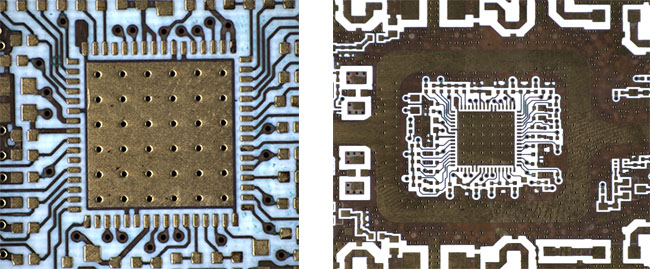

| Actual image —— | ||
 | ||
| ||

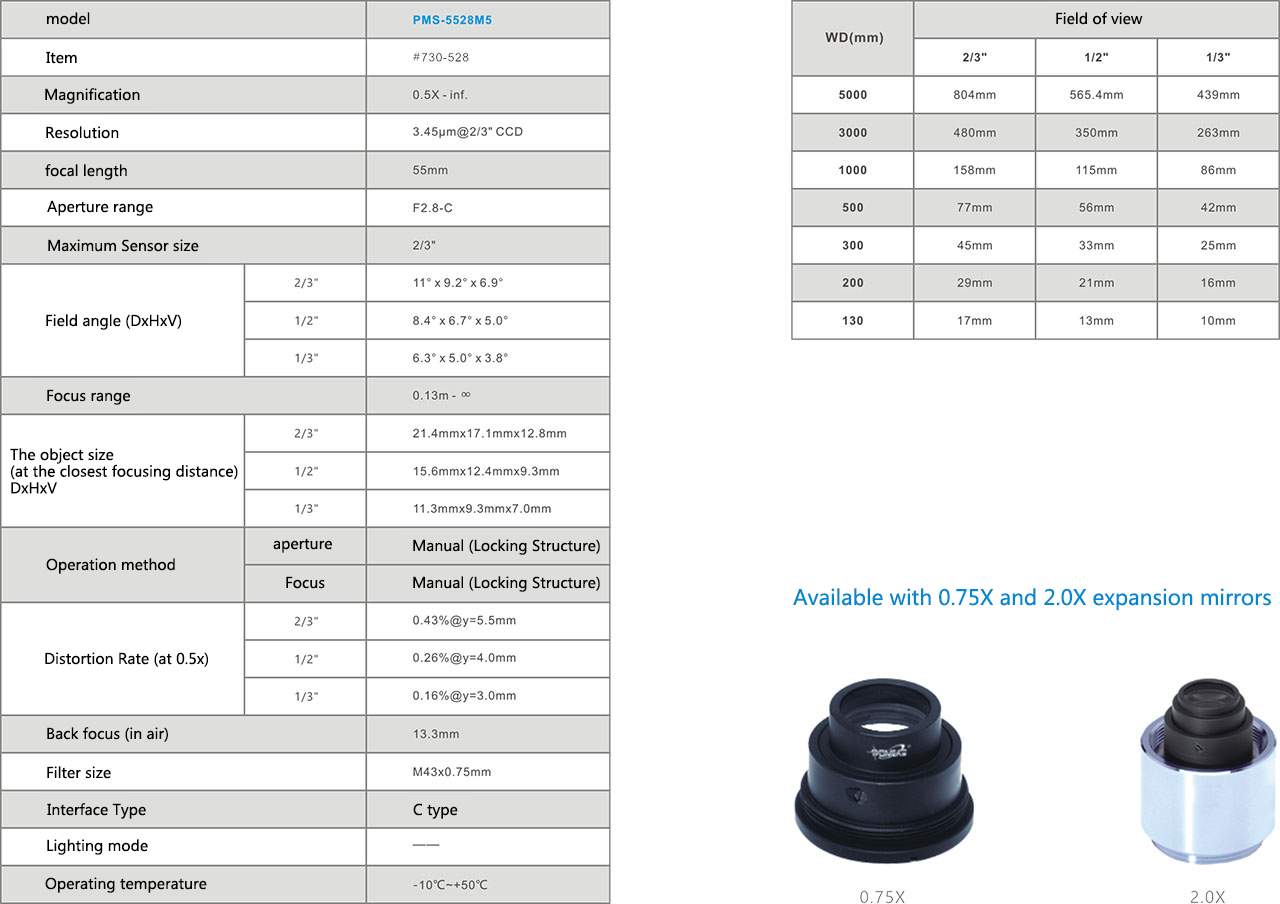

55MM Telecentric lens Parameter Working distance and field angle | ||
 | ||

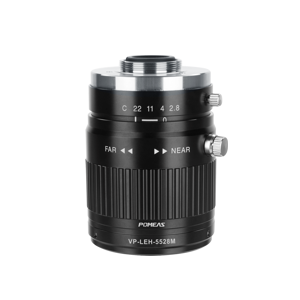

2/3” MP Machine Vision Lens
PMS-5528M5
55mm Telecentric lens has excellent imaging quality, it has not just telecentric optical design to make sure low distortion, but long working distance as machine vision lens.
