Parallel Illumination
PMS-LTD-60R/G/B/W

1、 Telecentric parallel LED light, specially design for backlight

2、 Improve the profile image contrast of the tested objective of the machine vision system

3、 Maximum show the telecentric lens DOF and telecentrity

pdf
Download File
1.04MB
[ RETURN LIST ] HOME>PRODUCT>Lighting

Feature
——

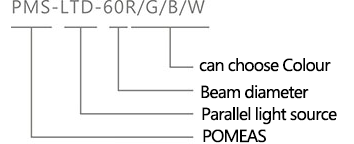

Naming Rule
——

1、 Telecentric parallel LED light, specially design for backlight

2、 Improve the profile image contrast of the tested objective of the machine vision system

3、 Maximum show the telecentric lens DOF and telecentrity






Operation diagram

——

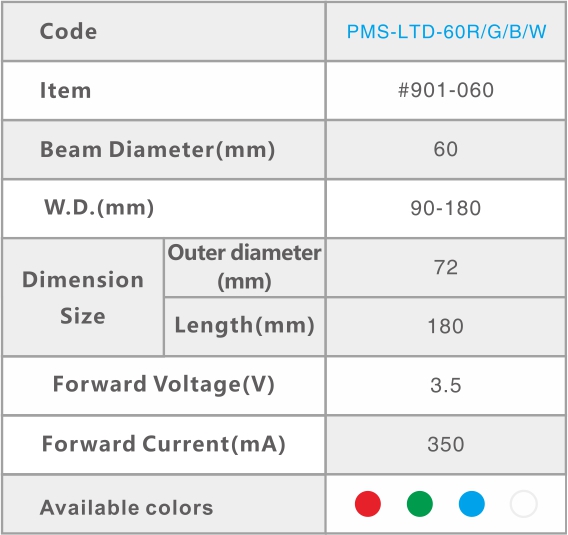

Square Parallel Light Parameter
——

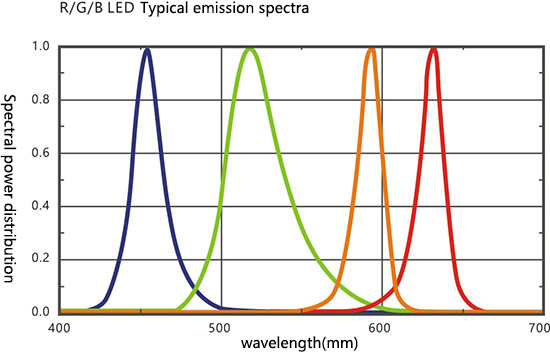

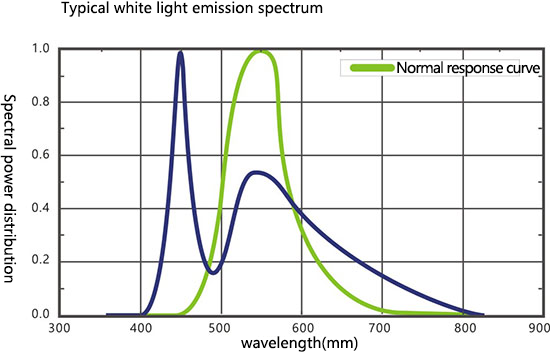

Spectrum
——
