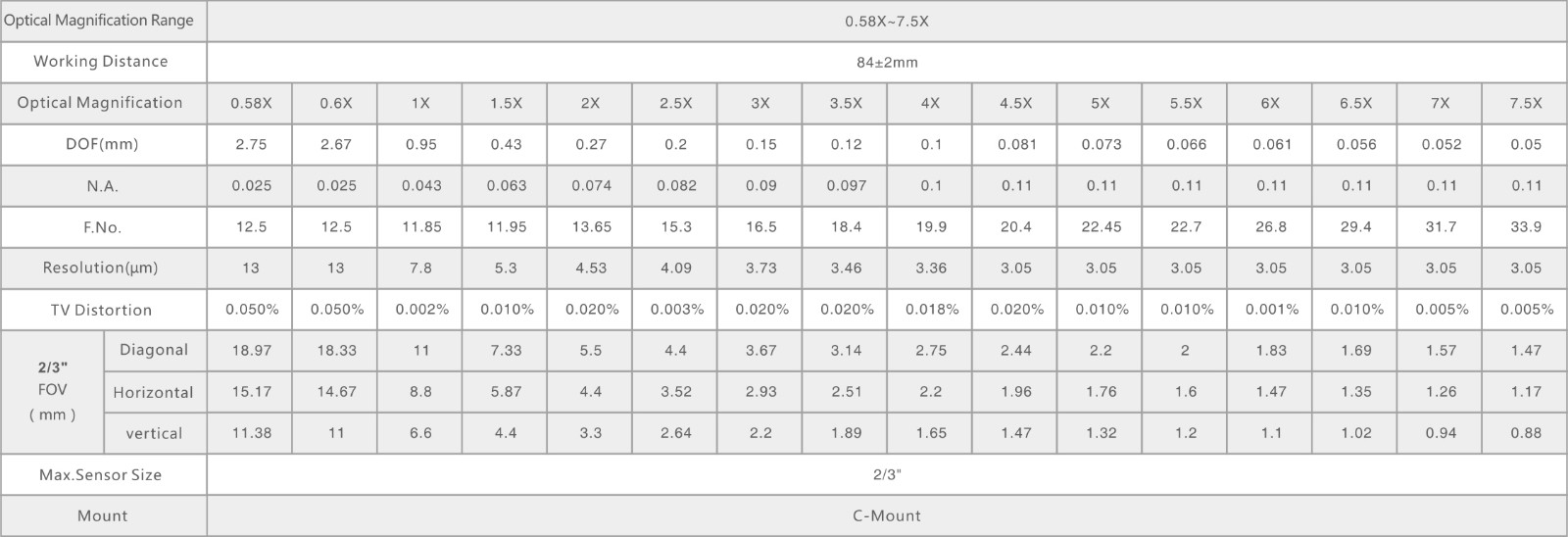

1、rofessional optical design, optical magnification 0.58x-7.5x, magnification ratio:12.5:1

2、 Excellent optical performance, high resolution, low distortion, super high N.A

The integrated motorized control systems are suitable for all the POMEAS zoom lenses. Motorized controlling system can control single or dual channels via RS232 or USB. SKD software will be provided.

Application Field

——

widely use for semiconductor, automation, communication fields.

Coaxial illumination

1. Infinity parallel incident light, with shadow-free and uniform illumination

2. Coaxial illumination structure ensure even illumination

Motorized zoom

1. High speed in zoom and focus and high accuracy in repetitive positioning; Imported DC servo motor, closed loop control

2. Single or double motor control system via 9-PIN RS232

3.Stable quality performance even in the strong vibration environment.

Detented zoom lens

1. Mechnical positiong structure, high accuracy in zoom and repetitive positioning

2. 15-divided points for mechanical positioning

3. High hardness alloy material, for a long lifespan; Precision mechanical structure.

Fine-focus Device

1. Used in narrow space, adjust fine-focus part for focusing on different height surface of parts, no need to change WD

2. Fine focus range: 3mm-12mm

3. Manual and motorized structure

     Silicone cover metal aligner                                      3um mask aligner silicone cover
