Product Advantage

1. Supporting 1 inch sensor camera, compared with the traditional lens in the same magnification field of view size increased by more than 1.45X;

2. Designed according to higher resolution requirements, the lateral resolution of a 1-inch camera can reach 4K level.

3. The multiplier is designed according to 0.68X~5X, which is suitable for most applications.

4. Modular design, multi-rate TV tubes and additional mirrors are optional, in addition, module components with other functions are provided for selection.

application area

It can be used in high precision measurement, positioning, visual inspection, microscopic observation and other fields.

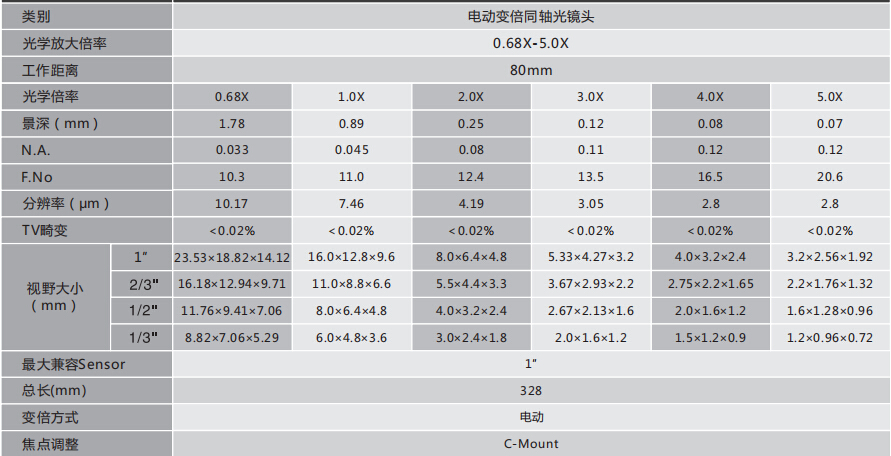

VP-LZHC2 Lens Parameter Table
