Printing Screen Visual Inspection Solution

(A) test content

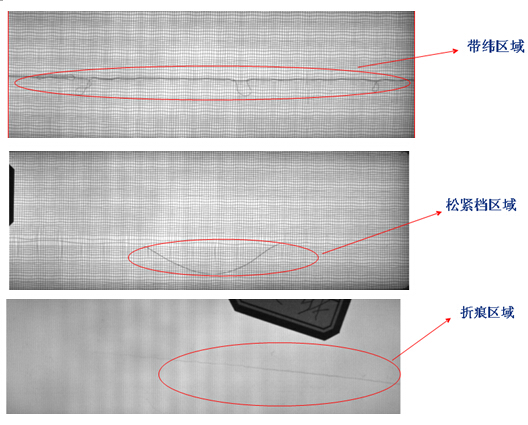

Filter for the incoming material to detect the main surface of the filter with the detection of latitude, elastic files, creases and other regional defects.

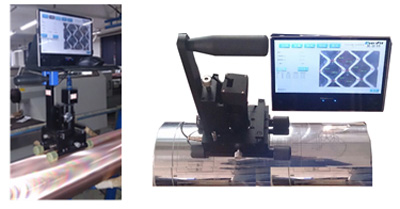

(B) of the printing filter vision detection solution

  POMEAS megapixel industrial lens PMS-5018M

  Pomeas Gigabit Ethernet Industrial Cameras

  The Pomeas ring light source

  IPC: I5CPU 4G memory

  A Machine Vision Inspection Software System Based on POMEAS Developed Independently

Prepare the appropriate machine vision detection solution according to the actual environment

(C) detection principle

In the printing filter vision detection solution, the use of Prism megapixel industrial lens to capture the image of the shooting area, and then image analysis and processing algorithms, can be accurately analyzed to detect defects in the surface of the filter. If an abnormality occurs, an alarm can be signaled or the machine can be stopped. On the workpiece does not meet the requirements of detection can be output after the control signal, excluding nonconforming products.
