Feature | Example | |
1, Double port, bi-telecentric, almost without deviation when used for measurement 2, Big FOV and high resolution design can achieve complete inspection at one time for large objects 3, Low distortion and deep DOF design. |
| |
Application —— | ||
Can be applied in high precision measurement of large objects and machine vision industry. | ||
| ||

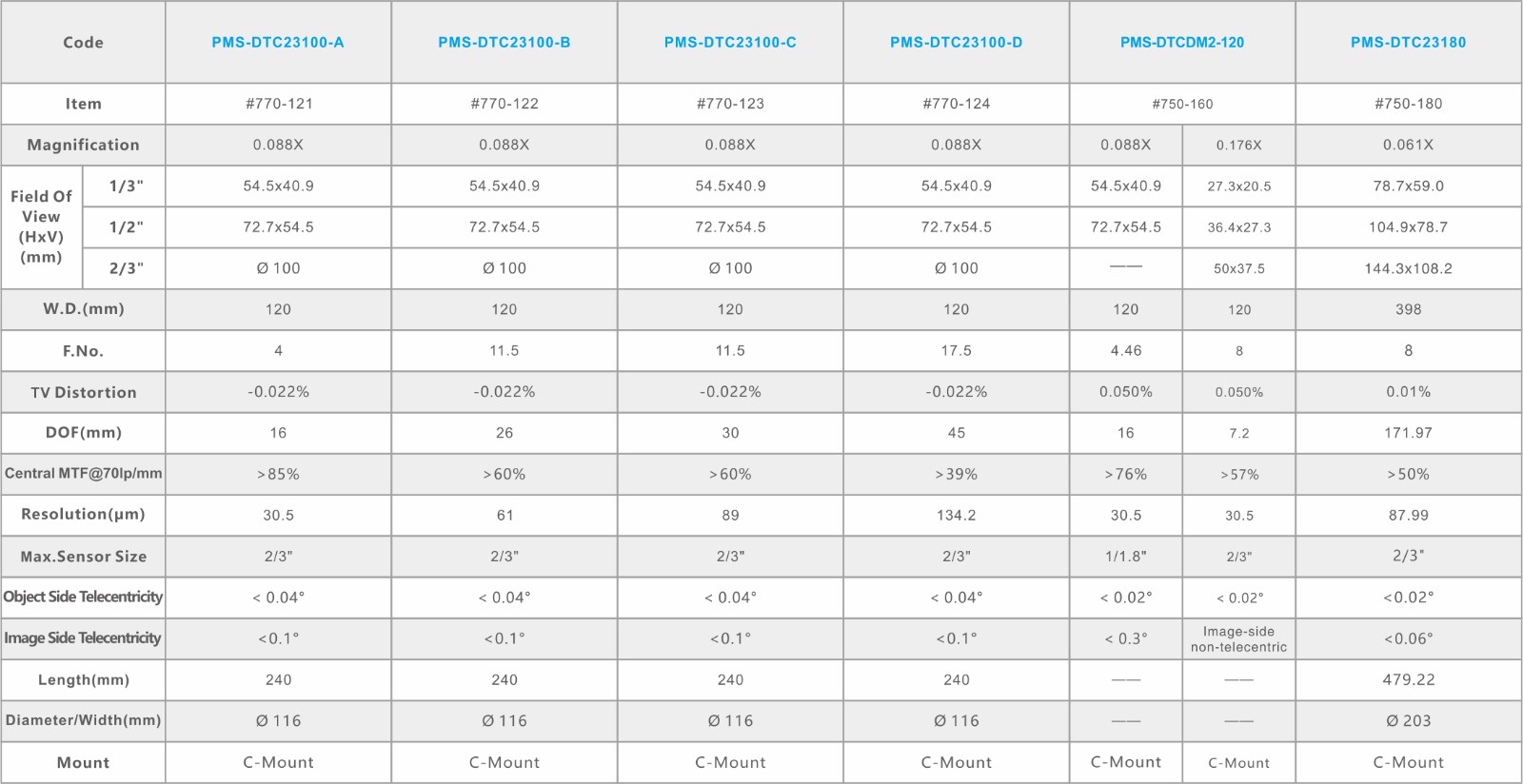

Bilateral telecentric lens Parameter —— | ||
| ||
|

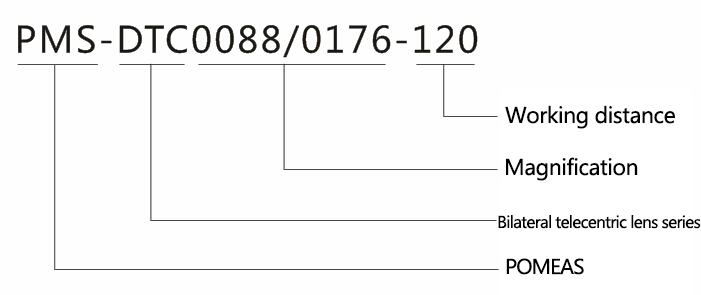

Naming Rule | Actual image | |||
Note: the same lens can be used with two cameras to capture different magnification of the picture, Meet the different measurement requirements. |
|
| ||
0.088X-Width measuring for PCB | 0.176X-big PCB | |||
|
| |||
0.088X - Width measuring for PCB | 0.176X - big PCB | |||
