Feature | Naming Rule | |
1,This series telecentric lens adopts objective telecentric design, which have features of high DOF, high resolution and low distortion; 2, Support C-mount camera with max sensor size as 2/3"; 3, Coaxial function is optional, coaxial light is even; 4, Standard C-mount; 5,Can work with prism. |
| |
Application —— | ||
Positioning inspection of mobile screen and PCB printing industry. | ||
| ||

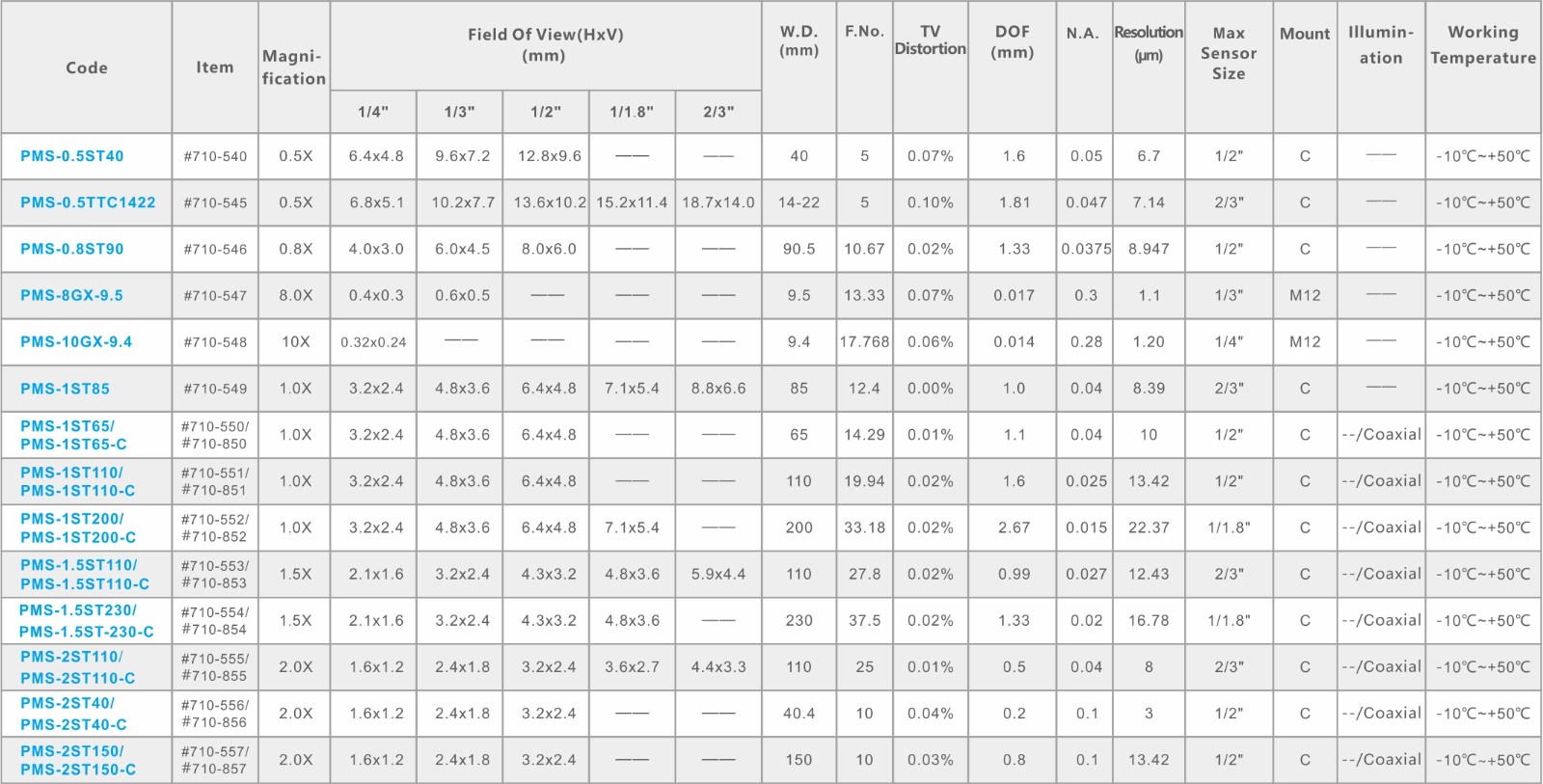

High-resolution telecentric lens Parameter —— | ||
| ||
| ||
Actual image |
|
|
| ||
External coaxial light source - HDMI interface wiring | External coaxial light source - LCD top connector | External coaxial light - the top of the LCD screen wiring |
