Feature | Naming Rule | |
1, all using the object telecentric design, with high depth of field, high resolution, low distortion characteristics; 2, support 1/2 '' or 2/3 '' of the target surface size camera; 3, coaxial lighting optional, uniform lighting; 4, the standard C interface; 5, can be used with the steering prism. |
| |
Application —— | ||
Can be used in factory automation and machine vision industry. | ||
| ||

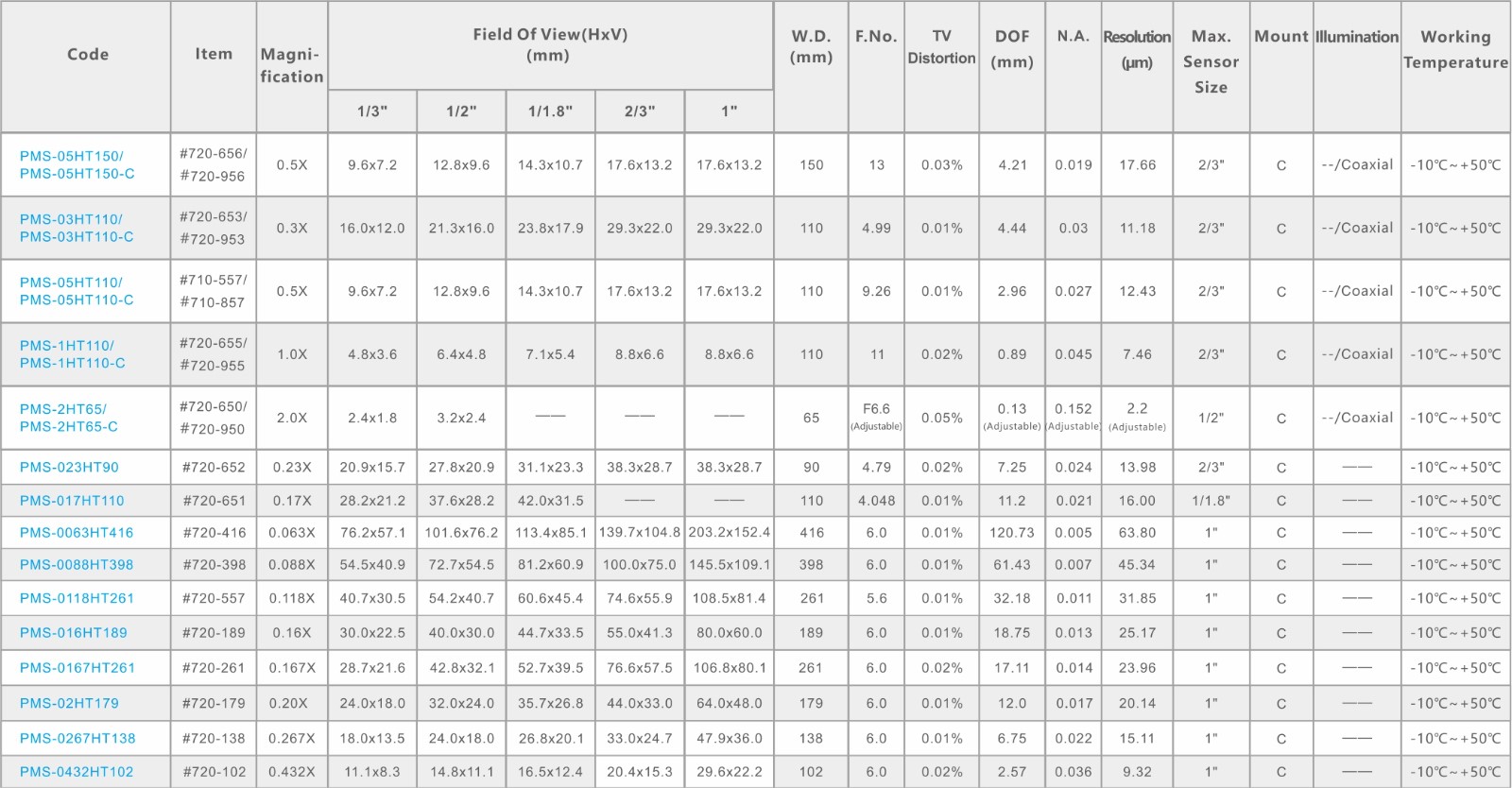

High-resolution telecentric lens Parameter —— | ||
| ||
|
| Actual image —— |
|
| ||
Φ30 parallel bottom light source - large hole detection | Φ30 parallel bottom light source - multiple holes detection | |||
 |  | |||
| Ring high angle light source - height difference circuit board | Annular shadowless light source - height difference circuit board | |||
